Quick Details

  • Place of Origin: Jiangsu, China (Mainland)
  • Brand Name: DVP
  • Model Number: DVP-740
  • Applicable fibers: SM, MM, DS, NZ-DS(G655), EDF
  • Fiber cleaved length: 8-22mm
  • Average splice loss: 0.02dB(SM),0.01dB(MM),0.04dB(DS),0.04dB(NZDS)
  • Return loss: ≥60dB
  • Tension test: 2.0N(200gf)(Standard)
  • Protection sleeve length: 20mm, 40mm, 60mm
  • Splice Program: 15 groups of preset programs, 1 group of manual setting
  • Language: English, Chinese, Korea, Russian, Spanish, Portuguese, German, French
  • Storage environment: -40~ +80 (temperature) , 0~95%RH (humidity)
  • Power supply: AC adaptor; 85~260V input voltage

Packaging & Delivery

Packaging Details Shockproof packaging with foam,caton box, or wooden case
Delivery Time 1~2 days after payment

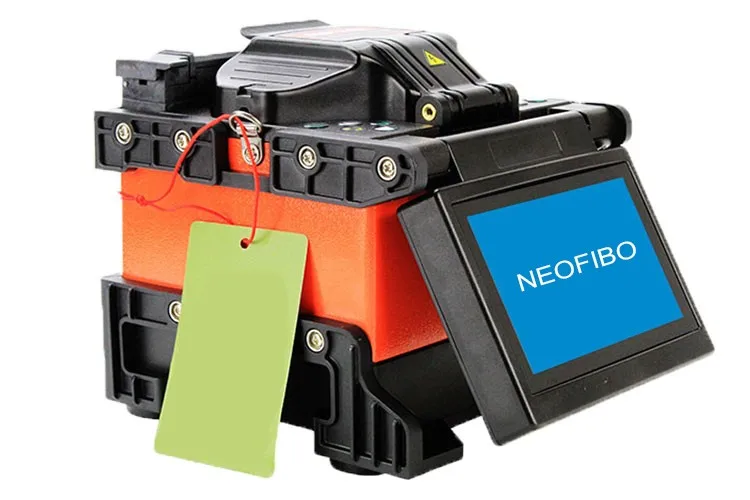

China Good Performance Digital Single Fiber Splicing Machine Price  DVP-740 Fusion Splicer

Product Description
Feature:

1.Brand New Fusion Splicer Kit DVP-740 Core Alignment With Fiber Cleaver
2.Color LCD monitor & 256 magnification
3.Max. wind velocity of 15m/s
4.8 Sec. splice time, 40 Sec. tube-heat time
5.Fully Automatic Operation
6.5000m altitude ensures Splice Quality
7.SYSTEM TEST ensures the best working condition
8.Pause function, convenient for scientific research
9.Store 8000 groups of splice results
10.USB&DC interface
11.High battery capacity, up to 120 times of continuous splice and heat

Specifications
1.Applicable fibers: SM, MM, DS, NZ-DS(G655), EDF
2.Fiber cleaved length: 8-22mm
3.Average splice loss: 0.02dB(SM),0.01dB(MM),0.04dB(DS),0.04dB(NZDS)
4.Return loss: ≥60dB
5.Tension test: 2.0N(200gf)(Standard)
6.Protection sleeve length: 20mm, 40mm, 60mm
7.Splice Program: 15 groups of preset programs, 1 group of manual setting
8.Language: English, Chinese, Korea, Russian, Spanish, Portuguese, German, French
9.Environment conditions: -25~+50 (operation temperature), 0~95%RH (humidity), 0~5000m (altitude)
10.Storage environment: -40~ +80 (temperature) , 0~95%RH (humidity)
11.Power supply: AC adaptor; 85~260V input voltage
12.Internal battery: 12V, 6Ah, up to 120 times of continuous splice and heat
13.Dimensions/Weight: 142(D)×122(W)×138(H)mm/1.95kg
Applicable fibersSM MM DSNZ-DSEDF
Cladding diameter100 to 150um
     Coating diameter100 to 1000um
 Fiber cleaved length8-22mm (standard)
     Splicing modeAuto & Manual
    Average splice loss                                     0.02dB(SM)0.01dB(MM)0.04dB(DS)0.04dB(NZDS)
Return loss:≥ 60dB
Environment conditions-25∼50 (operation temperature), 0∼95%RH (humidity), 0∼4000m (altitude)
Storage environment-40 +80 (temperature) , 095RH (humidity)
Protection sleeve length20mm 40mm 60mm
Tension test2.0N (Standard)
LanguageEnglish, Chinese, Korean, Russian,Spanish
InterfaceRS232 interface & video output
         Power supplyAC adaptor 85260V input voltage
Internal battery12V voltage, 10Ah, more than 200 times of continuous splices and heats
DC adaptor12V voltage,optional multipurpose external battery
Dimensions170W×140H×170Dmm
Weight3.3kg
Recommend Product

 If you like it. just contact with us for it! Do not miss it.and more product for you choose.

Company Information



FAQ

What does NEOFIBO offer?

We offer full range of quality and comprehensive fiber optic products, including Patchcord Production Machine, polishing jigs, as Seikoh Giken, Senko, Domaille or customized ones; Polishing Consumables, Tools, Cleanings, Tool Kits, Testing Equipment, Splice Items. We commit to offer you Attractive Price, Excellent Quality and Fast Delivery!

What will be the delivery cost?

All price listed are FOB Shenzhen. Your nominated courier is acceptable. Otherwise, we will use FEDEX, DHL, UPS or any other forwarder per confirmation and charge accordingly.

How the goods will be delivered?

For normal stock items, they will be dispatched within 1-2 business days after payment confirmation. However, for items out of stock, estimated leadtime will be 3-10 working days.

How can I order the goods?

NEOIFBO are pleased to offer our valuable customers three ordering channels, ie., Online Ordering, Fax Order Form and Issuing Formal Purchasing Order by mail.

How is the warranty for NEOFIBO product?

All products are warranted by NEOFIBO (consumables, normal tear and wear excluded) for one year after date of purchase. Any part defected in material or workmanship and returned to NEOFIBO, as NEOFIBO designates, shipping costs prepaid, will be, as the exclusive remedy, repaired or replaced, at NEOFIBO's option.
